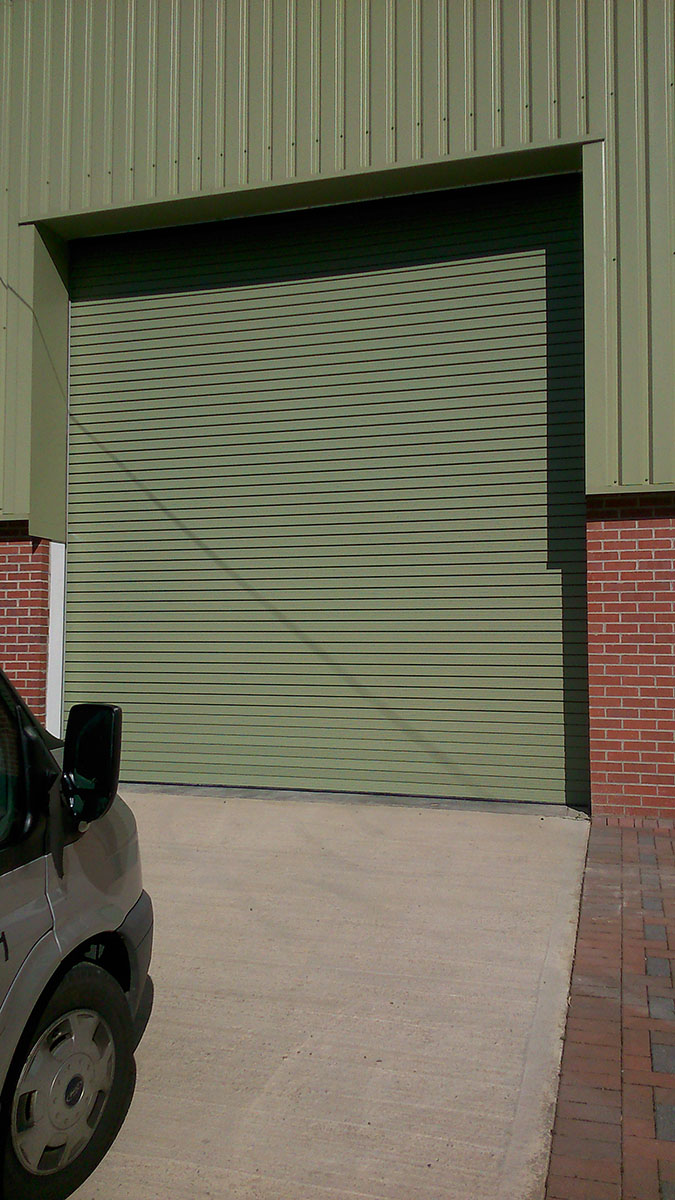

ArrowGuard -
Insulated Roller
Shutters

Superior security, effortless operation

For many years we have been actively engaged in the development, production and installation of our Roller Shutter Doors and have truly set the standard in terms of design and functionality.

Arrow favicon

Gallery

Superior security, effortless operation

In our modern production facility, individual components are produced and assembled on an order specific basis. The necessary parts are formed using dedicated machine tools operated by specialist suppliers. IT systems coordinate the production process, ensuring that all components are completed and are ready for prompt dispatch/site installation.

The design and manufacturing process ensures that all our shutters undergo intensive durability and safety testing and that they meet the requirements of EN 13241-1.

ArrowGuard Insulated Roller Shutters can be precisely customised for a wide range of uses. Traditional yet modern with robust and cost-effective material uses to provide a solution to meet today’s requirements.

  • Interlocking twin skin galvanised steel laths
  • Laths in-filled with polystyrene or foam
  • Barrel assembly supported with mild steel end plates
  • Safety brake to prevent uncontrolled dropping
  • Three-phase safe drive motor and gearbox with digital limits
  • Emergency stop buttons
  • Self-diagnostics for service reminders

Robust & reliable

Roller shutter doors you can trust

  • The shutter curtain is constructed from suitable, interlocking, twin skin galvanised steel laths, either in-filled with polystyrene or foam, and running in galvanised steel side channels, mounted on mild steel support angles which are bolted to the structure.
  • The shutter curtain is supported from a suitable steel tube barrel assembly at high level, running on steel bearings. The barrel assembly is supported between mild steel endplates. A rubber seal is provided to the bottom edge of door and a nylon brush seal to the door head.
  • A pad lockable chain keep is fitted to the drive side of the door for safe keeping/locking of the emergency haul chain. All mild steel components are finished in one coat primer.
  • Polyester Powder finish (to BS3900 F2 & F7) is available on request to any standard colour within the BS 4800 or RAL range.

CHOICE OF OPERATION

Manual or electrical options

  • Manual operation by means of a continuous galvanised haul chain, through single or double reduction gearing. A safety brake is fitted to the non-drive end of the barrel assembly to prevent uncontrolled dropping of the shutter curtain.
  • Electrical operation by means of a high-quality single-phase tubular motor and gearbox fitted within the barrel assembly. An emergency manual hand crank over-ride is provided (shutter side of opening only) as standard to allow operation of the door in case of power failure. A safety brake is fitted to the non-drive end of the barrel assembly to prevent uncontrolled dropping of the shutter curtain.
