Gate Access Control -ArrowControl

Gate Access Control where you need it

Providing the very best solutions in automated access, Arrow are the industry’s leading installer of specialist automatic and manual gate and door products.

Gate Access Control

Site security and staff safety is paramount. Knowing who is on site helps maintain a safe and secure environment.

In conjunction with our ArrowAccess range of gates and barriers, the opportunity to integrate ArrowControl is an obvious addition to help maintain site security.

With the ArrowControl range of digital key pads and proximity readers, we can help keep you safe secure and operational all in one go.

Finlays Security Gate

Gate Access Control systems from Arrow

SEC 0009
SEC0009 ACT5e Key Pad
  • IP 67 rated with illuminated keypad
  • 10 user codes
  • 102mmW  x 110mmH
  • 12-24v AC/DC
SEC0041 ACT10 KeyPad Resize

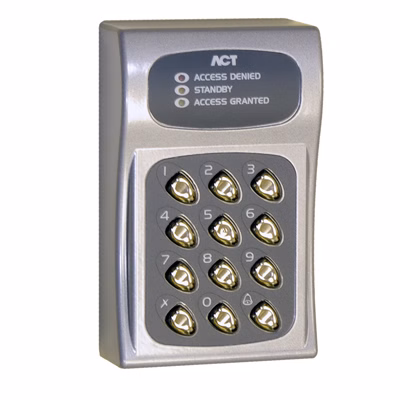

SEC0041 ACT10 Key Pad
  • Robust unit with LED indications
  • 10 User codes
  • IP54 rated
  • 87mmW x 138mmH
  • 12-24v AC/DC
SEC0042 v42 keypad Resize

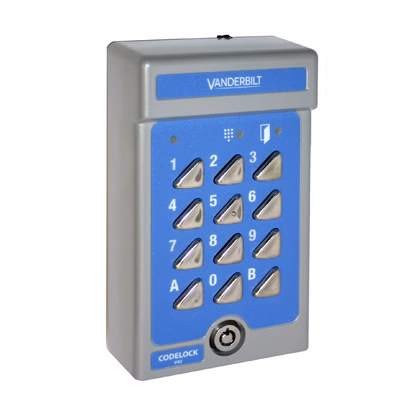

SEC0042 Key Pad
  • Robust unit for tough environments
  • 1 or 2 x 4 digit user codes
  • Single volt-free relay (pulse)
  • 80mmW x 140mmH
  • 12-24v DC18-24v AC
SEC-0055 Resize#

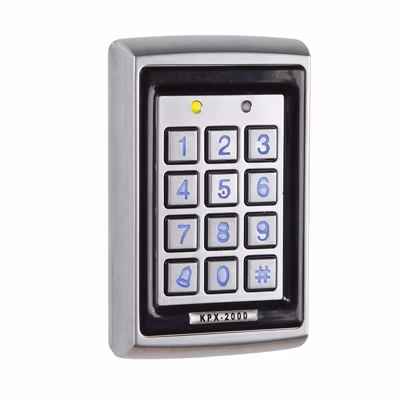

KPS2000 Key Pad
  • Keypad with built in prox reader
  • LED indications and selectable backlight feature
  • Input for external Wiegand reader
  • Up to 500 unique user codes
  • Supplied with 5 fobs
  • Rain shield available
  • 76mmW x 120mmH
  • 12v DC
SEC-0059 rain shield resize

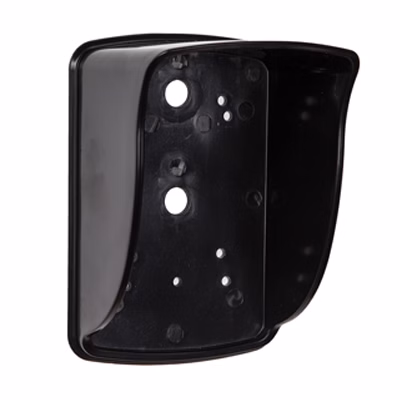

SEC0059 Rain Shield
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits

What do all the different IP Ratings mean?

IP Ratings explained

Typically speaking, an IP rating looks like the above graphic. The IP stands for “Ingress Protection” and this remains as the constant throughout the ratings. It’s the numbers that show the differentiation. Below is a detailed explanation of what each digit refers to when it comes to choosing the correct IP rating for your needs.

(1) First Digit (Protection against solids):
This digit ranges from 0 to 6 and indicates the level of protection against solid objects like dust and debris.

0: No protection against contact and ingress of objects.

1: Protection against objects larger than 50 mm, such as a hand.

2: Protection against objects larger than 12.5 mm, such as a finger.

3: Protection against objects larger than 2.5 mm, such as tools or thick wires.

4: Protection against objects larger than 1 mm, such as most wires and screws.

5: Dust-protected (limited ingress of dust allowed, but not enough to harm the device).

6: Dust-tight (no ingress of dust).

(2) Second Digit (Protection against liquids):

This digit ranges from 0 to 9 and indicates the level of protection against liquids, such as water.

0: No protection.

1: Protection against vertically falling drops of water (condensation).

2: Protection against vertically falling drops of water when tilted up to 15°.

3: Protection against water falling as a spray at any angle up to 60° from the vertical.

4: Protection against water splashing from any direction.

5: Protection against water jets projected by a nozzle (6.3mm) from any direction.

6: Protection against powerful water jets (12.5mm) from any direction.

7: Protection against immersion in water up to 1 meter for up to 30 minutes.

8: Protection against continuous immersion in water beyond 1 meter (specific conditions are provided by the manufacturer).

9: Protection against high-pressure, high-temperature water jets.

Examples:

  • IP67: This means the device is completely dust-tight (6) and can withstand immersion in water up to 1 meter for 30 minutes (7).
  • IP54: This means the device is protected against dust to a degree that won’t interfere with operation (5) and against water splashes from any direction (4).

Supply and install

Our ArrowControl range of Gate Access Control products, provides our customers with a wide choice from the very best manufacturers. We have established partnerships with the most revered companies in this space, to ensure our customers always have the perfect solution at their fingertips.

With ArrowControl, our customers can be assured of receiving the perfect solution installed by our team of experts from our national network of engineers.

ArrowControl has the advantage of having access to the very best product from the very best suppliers. We’re dedicated to allying ourselves with only the very best suppliers in Access Control systems. We’re delighted to work with RTR Systems, Country Gates, SGS, ATG Access and Expert Security Systems.

To provide a perfect installation, our engineers are put through a rigorous training process. We ensure that our teams are fully confident and certified to install the array of access control products we can supply.

We understand the cost of downtime to your business. That’s why we aim to respond to and resolve callouts as quickly as possible. Our highly efficient processes and well-coordinated team enable us to deliver our services in a timely manner, helping to keep your business running smoothly.

At Arrow, we pride ourselves on keeping the customer informed and included throughout the process. From the initial contact to the final project sign off, our team will keep you or your contractor completely up to date, ensuring a smooth and perfectly delivered service.
