ArrowSpiral -
Spiral Doors

Swift access for maximum efficiency
ArrowSpiral Spiral Doors open up to 1.1 metres per second, delivering rapid access for high-traffic industrial environments

Their compact spiral design saves valuable space while reducing wear and maintenance, making them ideal for modern industrial settings
Reliability
Logistics
industrial
Construction
Retail
Utilities
Industrial
MOD & Public Sector

Spiral doors

ArrowSpiral Doors open 6 times faster than similar sectional doors, therefore, they are extremely suitable in an environment where you have intensive logistic movements.

This door opens fast, up to 1.1m per second depending on the door size. Real savings on the energy cost can be achieved with this system.

Accelerate operations with unmatched speed

ArrowSpiral has a revolutionary spiral system with specially designed rollers and an uninterrupted chain-steel-cable system with direct drive. This patented system is a key contributor to the sleek design of the door.

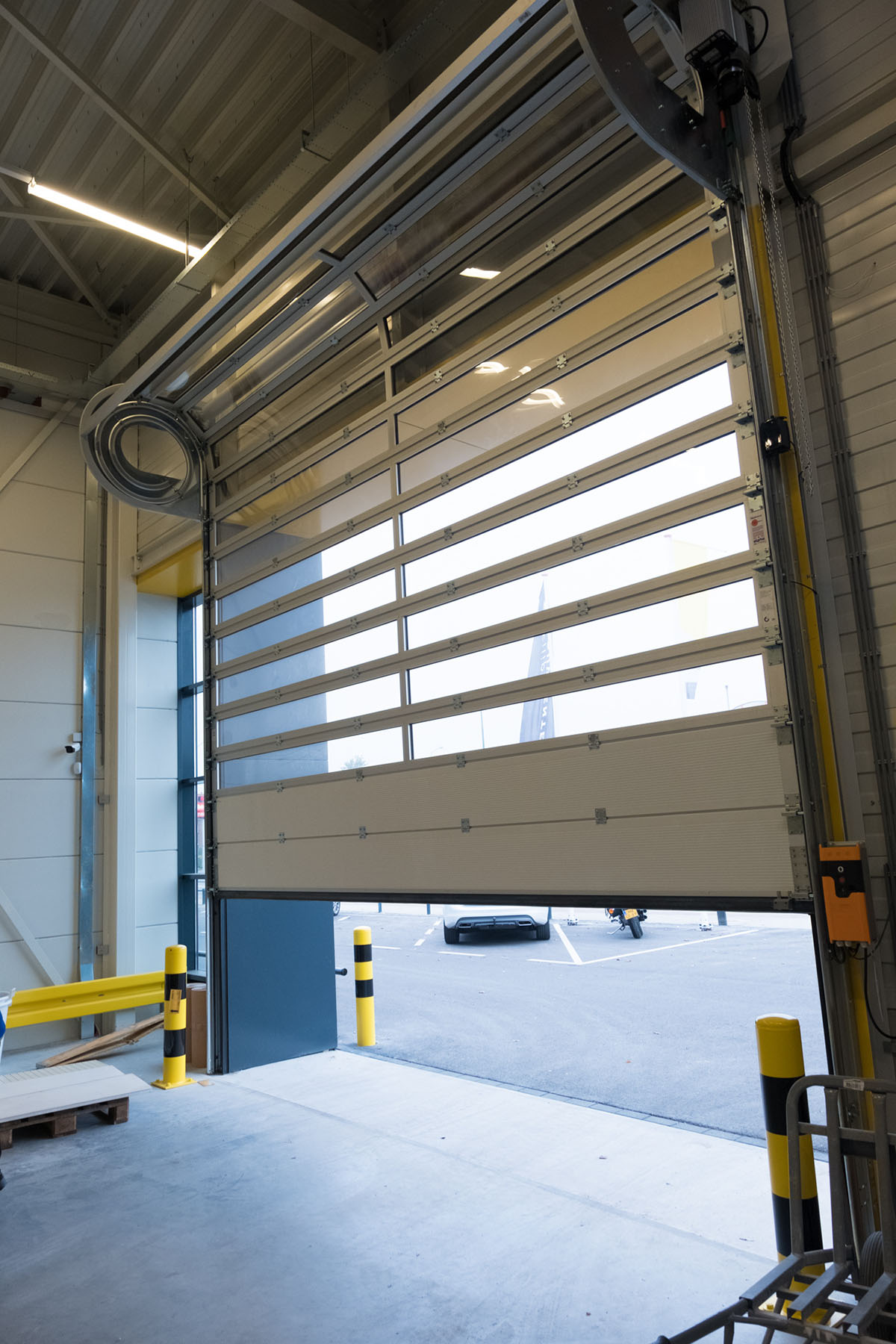

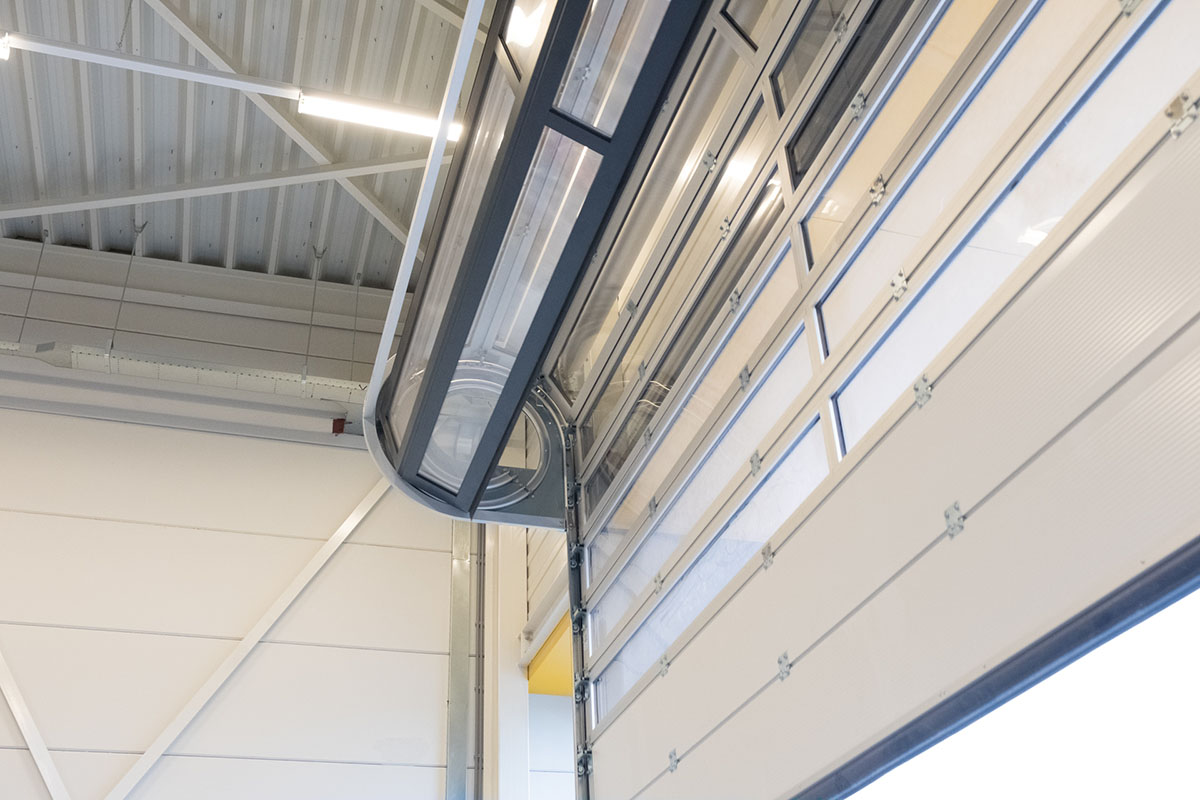

The spiral door is a high-speed door which consists of Microline sections with a working height of 366mm. During the opening of the door, the sections run along a spiral-shaped rail. A powerful drive allows the door to quickly and silently run along the unique rail system.

The spiral door is a contemporary innovation that takes up hardly any installation space thanks to innovations such as the spiral system and the chain drive. The door is not folded but rolls up, with the panels not touching each other, preventing the wear of the door. A spiral door offers a solution particularly suited to spaces where the ceiling construction does not provide room for an overhead door.

The Helix is cheap to maintain thanks to a guaranteed low maintenance period of 200,000 cycles. The springless drive system means no extra maintenance is required. Moreover, the uprights consist of two parts so that the panels can be exchanged quickly and easily in the event of damage.

  • Fast operating: 1.1 m/s
  • Durability/low maintenance
  • Energy saving, high thermal rating, climate control, cost savings
  • Space saving
  • Aesthetics: a wide range of finishes and colours available
  • Light transmittance: various options available
  • Can be automated using radar, radio remotes, induction loops

Specification

  • Warning flash light
  • Connection of traffic lights
    (red/green or red and green)
  • EN13241 compliant
  • Safety light curtain
    If this curtain is interrupted by an obstacle the door will automatically fully open until the screen is freed again
  • Manual operation
    The door can be manually opened in the event of a power loss
  • Finger-pinch-protection

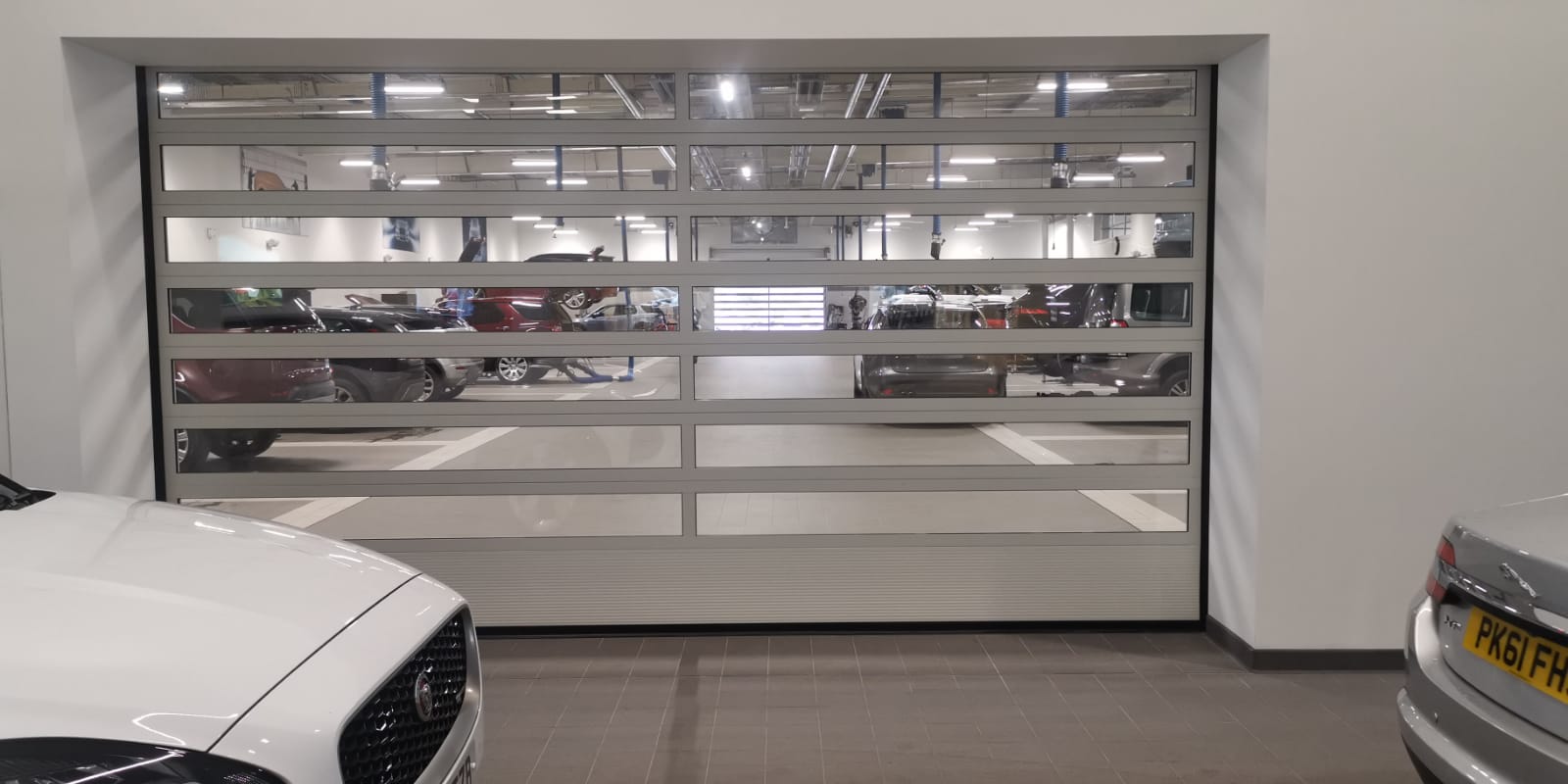

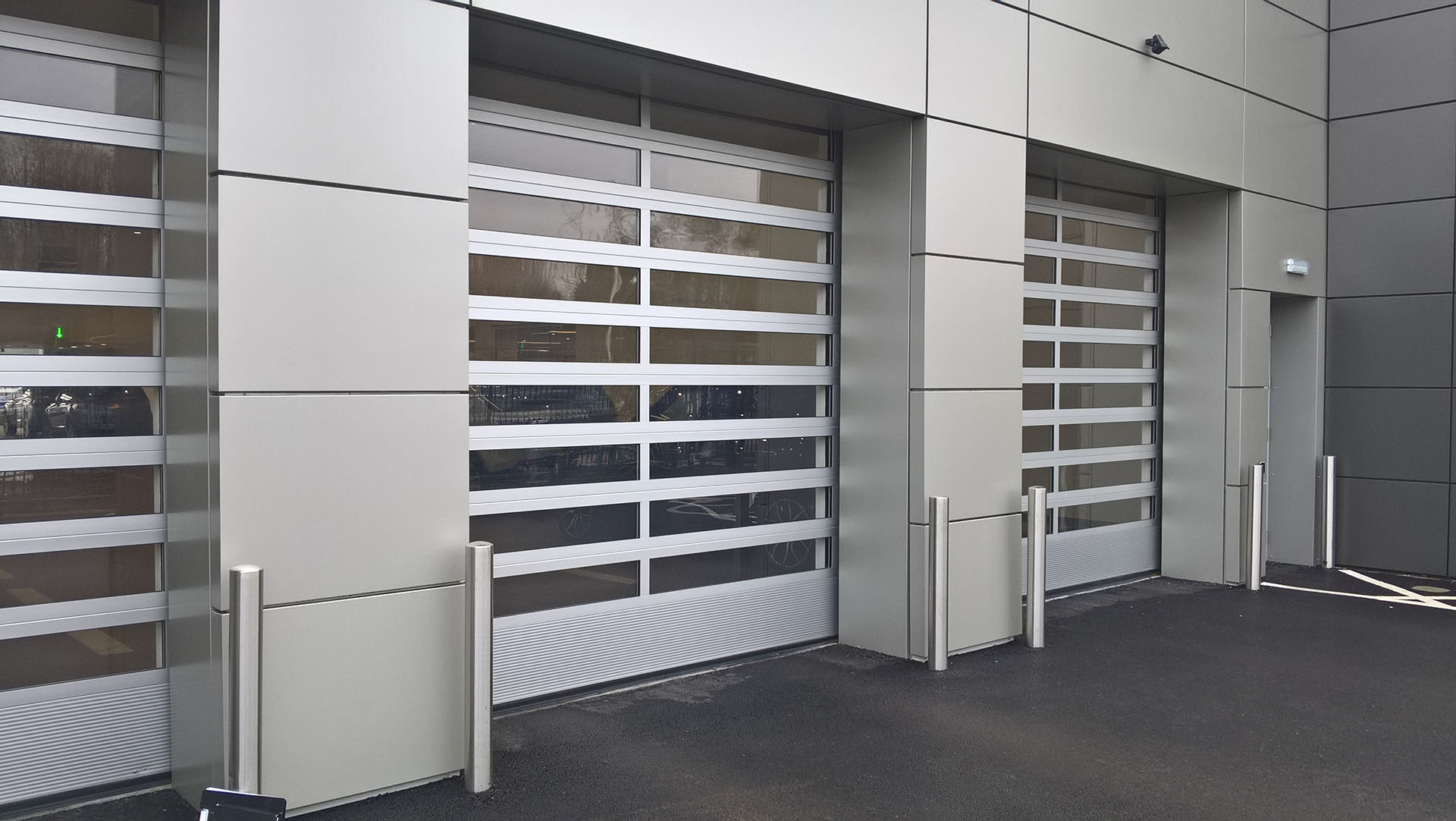

The spiral door is also available with one or more sections made of anodised aluminium profiles, filled with insulating double glazing.

  • Outside coating The outside of the sections has a polyester-coating in RAL9002 (Off-white) or RAL9006 (aluminium silver)
  • Inside coating The inside of the sections has a polyester-coating in RAL9002 (Off-white)
  • Custom colours Other colours are available on request

  • Horizontal sandwich-sections consisting of a shell of aluminium with a CFC-free polyurethane (PUR) core with finger-pinch-protection
  • Panel thickness: 40mm
  • Rails made of galvanised steel
  • Middle hinges in galvanised version
  • Specially developed top and bottom sealing
  • Unique side seal
  • Wind and waterproof sealing between the panels

The control system has 3 buttons (open, stop, close) and regulates a multitude of functions such as:

  • Adjustable open time
  • Service and run mode
  • 7-segment display for controlling the various functions
  • Choice of permanently open or permanently shut

Other forms of operation – standard control box:

  • Push-button
  • Electronic keypad
  • Pull switch
  • Key-operated switch
  • Photocell
  • Radar
  • Induction loop detection or remote control

Gallery

Our Services

We Offer A Range Of Services To Various Sectors

Excellence in UK-based manufacturing of Roller Shutter and PVC Traffic Doors
01
Unrivalled expertise in Industrial Door installation
02
we offer 24/7 callouts to our customers.
03

What our customers say

Mark and Lee were fantastic in every aspect. They were punctual, polite and professional. They respected the fact we are a Pharma company and followed our processes to the letter. A real credit to your company and will definitely use and recommend in the future.

Paddy Ford
Facilities and Fleet Manager, Pharmaxo

We had all of our workshop doors replaced last year and I was very happy with how the process went. From start to finish it was a very smooth exercise and the team that fitted the doors were very professional, but also, extremely friendly. I really want to highlight that our workshop that week was extremely busy and we needed to remain operational. The teamwork between Arrow and my engineers was excellent and caused minimal disruption to a very busy part of our business.

Cliff Symons
Aftersales manager for Steven Eagell Toyota Letchworth

Following the installation of a DualAir® door, NE Plastics observed there had been a reduction in both road and wind noise, and that the factory was also warmer. This resulted in better working conditions and a reduction in their energy bills.

NE Plastics
Dartford

Arrow met our delivery and customer service expectations from day one. We chose them for three reasons: outstanding Health & Safety adherence, skilled engineers, and knowledge transfer to our team.

Meknath Vidi
Head of Engineering, Finlay's

Sarah has been an absolute pleasure to work with. She has picked everything up that we need immediately and has fielded a number of out of hours calls for me and resolved them. I really can’t speak highly enough of her.

Declan Place
Account Manager, Mace Operate

I have worked with Arrow for a few years and have always had quick, reliable service. I've never had any issues and when I encountered a problem or wanted to know some information, Arrow always responded quickly and never hesitated to help. Arrow are always happy to come to site to assist with any issues you have or speak with you about any upcoming projects.

Jack Taylor

Working alongside a fully operational distribution centre handling food warehousing and 600+ daily vehicle movements, Arrow flawlessly implemented new barriers, traffic lights and safety equipment without a moment of operational time being lost.

Waitrose
Aylesford Regional Distribution Centre

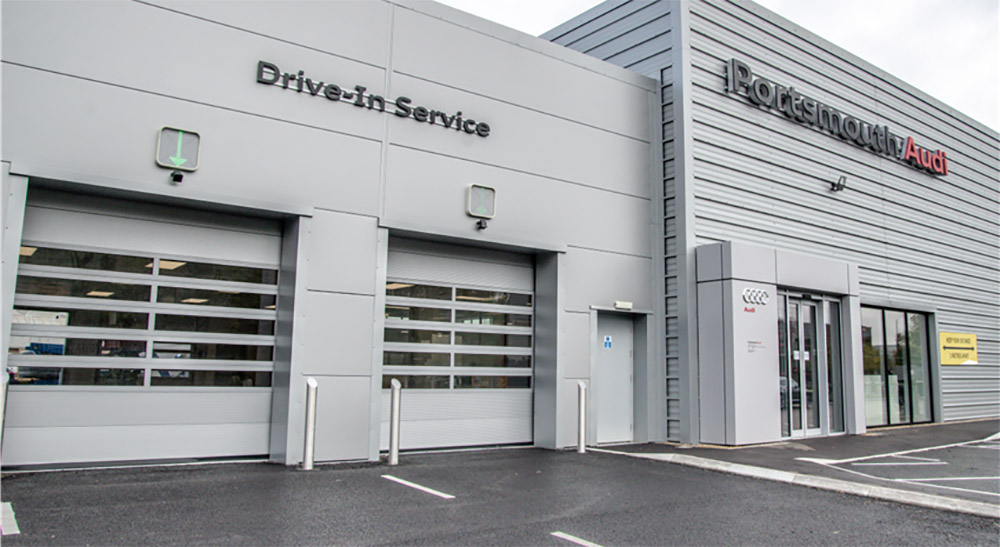

Audi Portsmouth Case Study
